Network Extender

$205.00

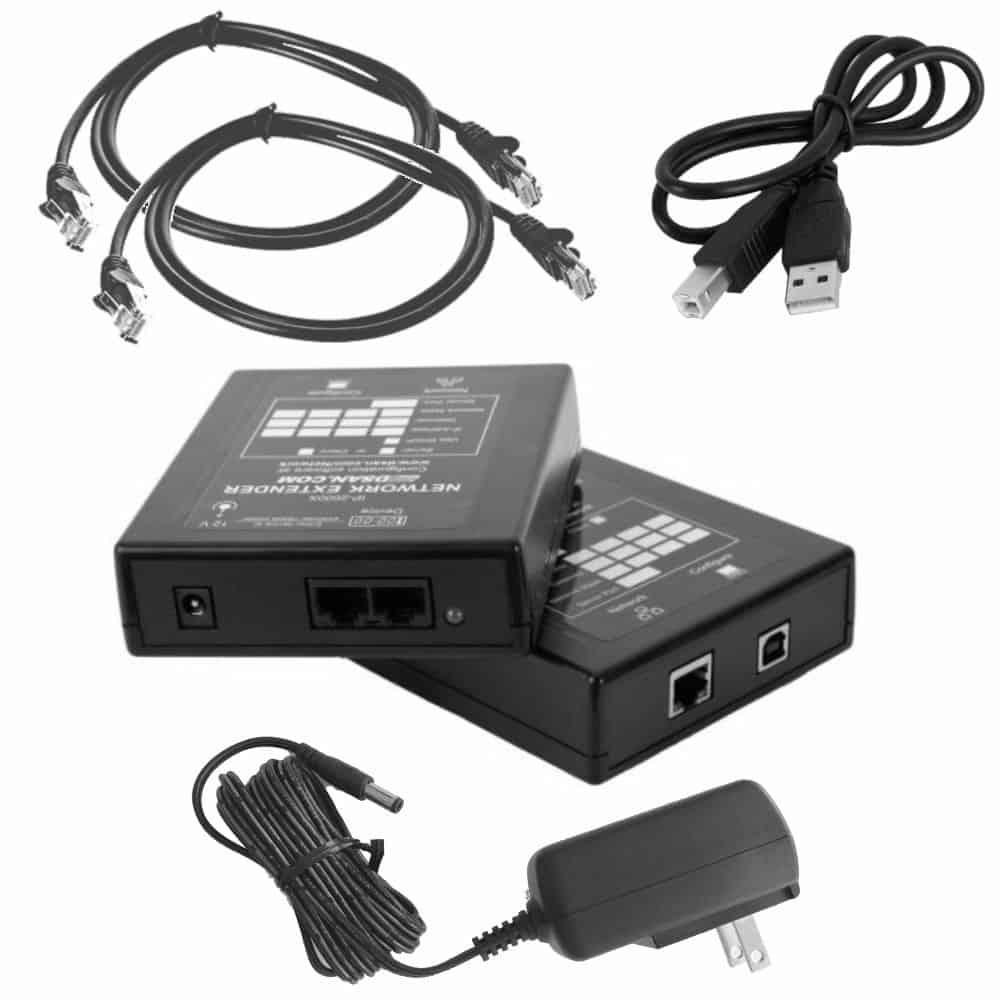

IP-Address configurable adapter to transmit or receive serial data over Ethernet. Requires 2 – one configured as server, the other(s) as client(s) (but are sold separately so that additional units may be purchased individually). Includes 6-foot USB cable, 7-foot Cat-5 cable, and an external power supply

SKU: IP-2000X-PC Category:

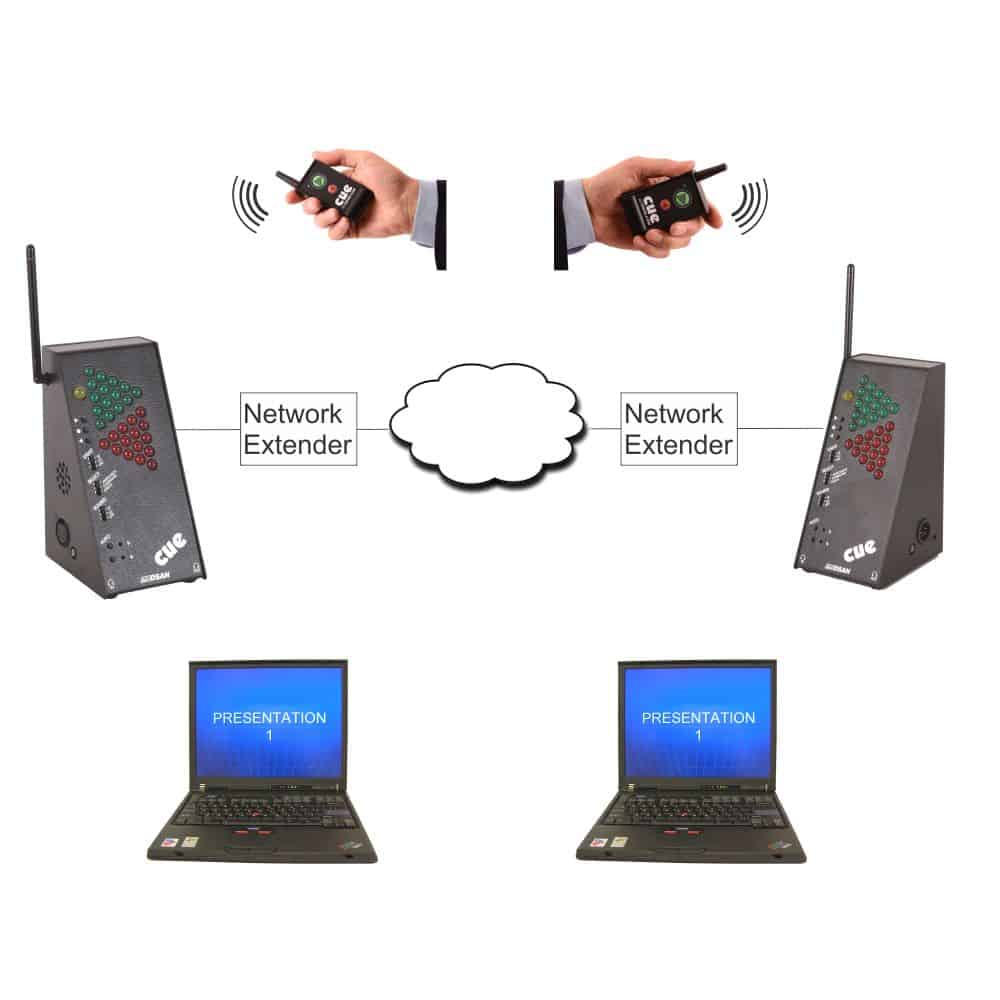

Network Extender is a serial to ethernet adapter that allows two or more PerfectCue cue lights to communicate over a local- or wide-area network. Up to six “client” cue lights can be served by one “server”-configured cue light. Please note that two Network Extenders are required; one is configured as a server, the other(s) as client(s).  They are sold separately so that additional units may be purchased individually.  Includes USB cable, Cat-5 cable, and an external power supply.

Specifications:

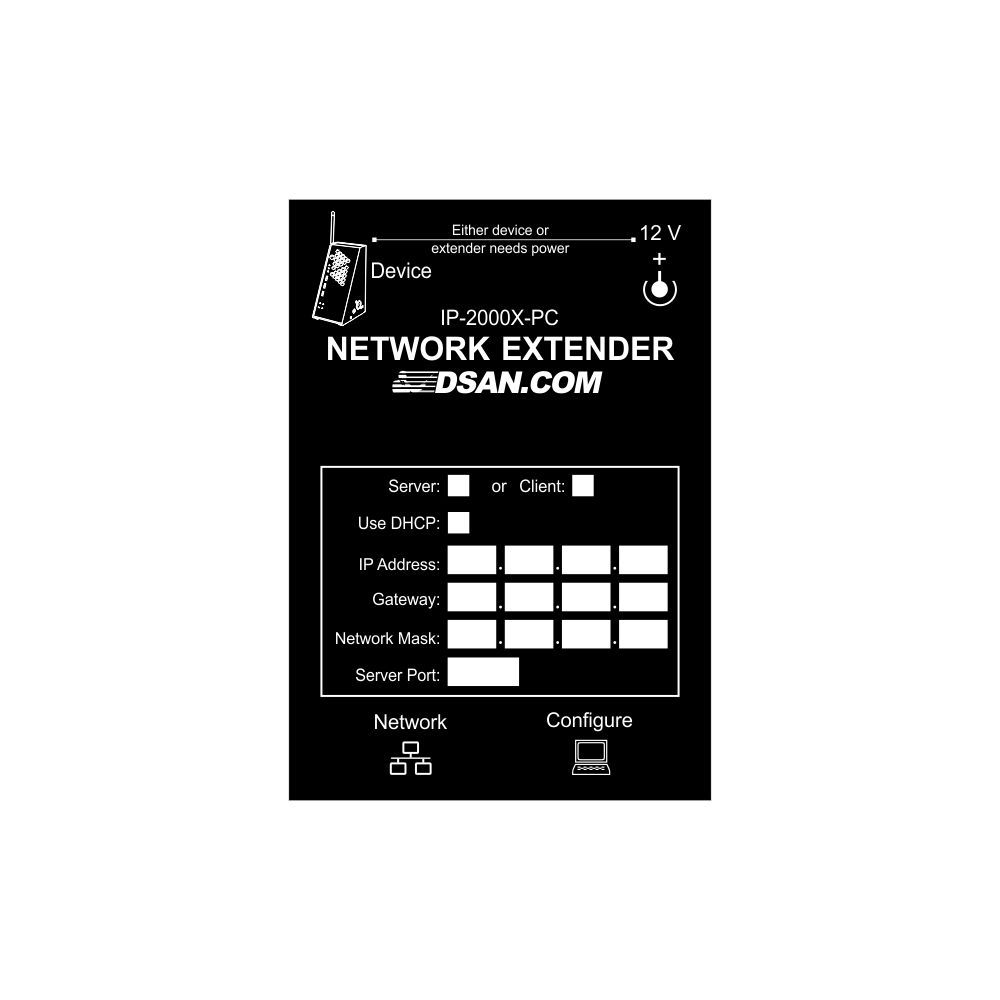

• Ports: Two RJ45 for connection to devices; one RJ45-Ethernet for connection to Network; one USB for connection to PC configuration app
• 12-V external power supply (Note: Either connected device or Network Extender only need power – not both)

Product Dimensions:
• 4½“ x 4” x 1”
• Weight: 7 oz.
